| Finish Pro FP-5285
Listed For Sale at MachineKs.com in category - Tool & Cutter Grinders. |
|
|
| |
|
| 52 WIDTH Finish Pro FP-5285 BELT GRINDER, METAL SANDER/DEBURRING/FINISHING | | Ad Id#: | 17788 | | Seller Ref.# | 145241 | | Model: | FP-5285 | | Make: | Finish Pro | | Year: | ( New ) | | Price: | $38,500.00 | | Location: | USA |
| | | Listed By: | Machinery Values Inc. | | Address: |
401 Supor Blvd.
Harrison NJ 07029
USA
Phone: 973-497-7505
Fax: 973-497-7501
| |
|  | | Description: |

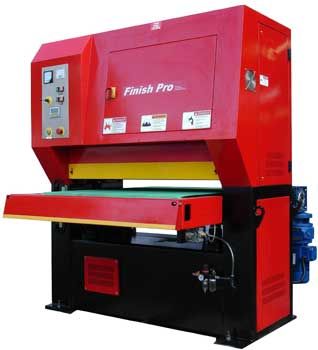

NEW Finish Pro 52 x 85 Metal Sander/Deburring/Finishing Machine
Model: FP-5285
STANDARD FEATURES:
Abrasive belt size: 52 x 85
Motorized Table Lift
Variable Speed Conveyor with inverter drive
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer )
to Re-adjust the tracking system when running extremely out of parallel belts
4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head
in 3-5 seconds in the even of loss of air pressure or activation of any
emergency stop device
Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6 outlet is located adjacent to abrasive head in
sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English
on machine 208/230V, 3-Phase
MACHINE SPECIFICATIONS:
Max. Part Width 52
Abrasive Belt Size 52 x 85
Contact Roller Size 8 Dia
Passline Height 34 – 37
Max. Thickness Capacity 3-1/8
Conveyor Drive Speeds 8-40 FPM
Infeed Conveyor Length 20
Dust Collector Capacity 2,800 CFM
Main Motor 30 HP, 230V / 460V, 3-Ph
Conveyor Motor 3 HP, 230V / 460V,3-Ph
Table Lifting Motor 3 HP, 230V / 460V, 3-Ph
Net Weight, approx. 6,650 LBS
Machine Dimensions, LxWxH 89 x 98 x 93
CAUTION: If fire hazardous materials, such as
aluminum, titanium, magnesium, etc., are to be
processed, a dust collection system that conforms
to National Fire Protection Association (NFPA)
should be used
NOTE:
Prices are for 208-230 Volts
Total amps 120 @ 230/3/60
Compressed Air Required: 2 CFM @ 90 PSI
OPTIONAL ACCESSORIES: (call for pricing)
Wet Dust Collector # WDC-FP52
Heavy Duty Ducting Package # HDDP-5285
|
|
|
NOTE: Displayed on page Finish Pro FP-5285 52 WIDTH Finish Pro FP-5285 BELT GRINDER, METAL SANDER/DEBURRING/FINISHING is listed under ID# 17788 by Machinery Values Inc. in category Tool & Cutter Grinders. For any additional info regarding this Finish Pro FP-5285 please contact directly Machinery Values Inc..
|
