Cincinnati-Milacron MONOSET MODEL #MT
Listed For Sale at MachineKs.com in category - Tool & Cutter Grinders. |
|
|
| |
|
| Cincinnati-Milacron MONOSET MODEL #MT TOOL & CUTTER GRINDER, POWER WKHD., H |
| Ad Id#: | 18921 | | Seller Ref.# | 151759 | | Model: | MONOSET MODEL #MT | | Make: | Cincinnati-Milacron | | Year: | 1978 ( Used ) | | Price: | $0.00 | | Location: | USA |
| | | Listed By: | Machinery Values Inc. | | Address: |
401 Supor Blvd.
Harrison NJ 07029
USA
Phone: 973-497-7505
Fax: 973-497-7501
| |
|
 |
| Description: |

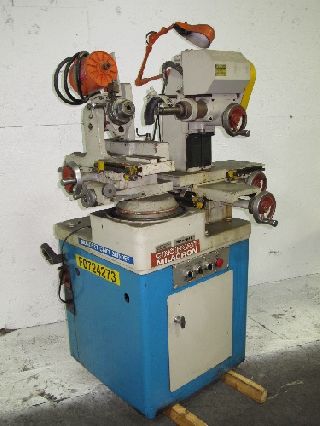

CINCINNATI MILACRON "MONOSET" TOOL & CUTTER GRINDER
MODEL: MT S/N: 3152A0178-0102 NEW: 1978
CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
MAX. GRINDING WHEEL DIA. .................... 4"
MAX. LENGTH OF WORK BETWEEN SPINDLE &
TAILSTOCK CENTER .......................... 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
LONGITUDINAL .............................. 5-3/4"
CROSS ..................................... 5-3/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL ..................... 235 DEG.
ABOVE AND BELOW CENTER .................... 40 DEG.
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL .............................. 6"
CROSS ..................................... 7-1/2"
WHEELHEAD, VERTICAL MOVEMENT:
ABOVE CENTER .............................. 4.5"
BELOW CENTER .............................. 5"
SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS ................ 4,000,
5,730, 8,000 RPM
(1) WORKHEAD SPINDLE SPEED ................. 436 RPM
APPROXIMATE WEIGHT ........................ 1,500 LBS.
MACHINE FEATURES:
HARD WAYS & SCREWS
MOTORIZED WORKHEAD
1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD
BIJUR ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS
** EXCELLENT CONDITION & APPEARANCE **
|
|
|
NOTE: Displayed on page Cincinnati-Milacron MONOSET MODEL #MT Cincinnati-Milacron MONOSET MODEL #MT TOOL & CUTTER GRINDER, POWER WKHD., H is listed under ID# 18921 by Machinery Values Inc. in category Tool & Cutter Grinders. For any additional info regarding this Cincinnati-Milacron MONOSET MODEL #MT please contact directly Machinery Values Inc..
|
