| Ad Status: | CLOSED | | Ad Id# | 19215 | | Seller Ref.# | 8744 | | Name/Type: | 138 TON, AMADA,ASTRO 100 MH AUTOMATED BENDING ROBOT,FBDIII1253M,2000 | | Make: | AMADA | | Model: | ASTRO 100 MH | | Year: | 2000 ( Used ) | | Location: | USA | | Price: | On Request | | | | Description: |
|---|
| STK#: 8744

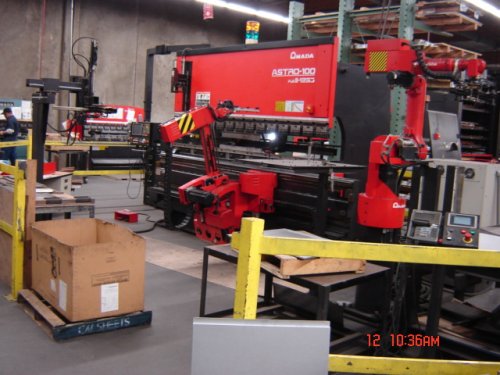

138 TON, AMADA,ASTRO 100 MH AUTOMATED BENDING ROBOT,FBDIII1253M,2000
Brand AMADA
Model ASTRO 100 MH AUTOMATED BENDING ROBOT
FBDIII1253M
Year 2000
DRIVE MOTORS: AC SERVO (5) MOTORS
MAX. PART SIZE: 31.5" X 39.5"
MAX. MATERIAL WEIGHT: 33 LBS
FLANGE LENGTH REPEATABILITY: 0.004"
GRIPPER SPECS: 2 STANDARD
POWER REQUIREMENTS: 200 VAC , 30 KVS,
100A 3 PHASE
AIR REQUIREMENTS: 30 FT./MIN @ 71 PSI "
DIA. LINE
MACHINE WEIGHT (X2): 27,496 LBS / 1,367 LBS
OVERALL CRATED DIMENSIONS (X2): 16'5" X 9'4" X 11'1"
4'8" X 3'11" X 6'2"
MAX. TONNAGE: 138 U.S. TONS
BED LENGTH: 122"
MAX. STROKE LENGTH: 5.9"
OPEN HEIGHT: 16.5"
THROAT DEPTH: 15.7"
DISTANCE BETWEEN HOUSINGS: 106"
RAM REPEATABILITY: +/- 0.0004"
ANGULARITY ACCURACY: 0.25
APPROACH SPEED: 165" PER MIN
BENDING SPEED: 2.4" TO 18" PER MIN
PROGRAMMABLE
RETURN SPEED: 212" PER MIN
OVERALL MACHINE DIMENSIONS:..... |
|---|
|
|---|
